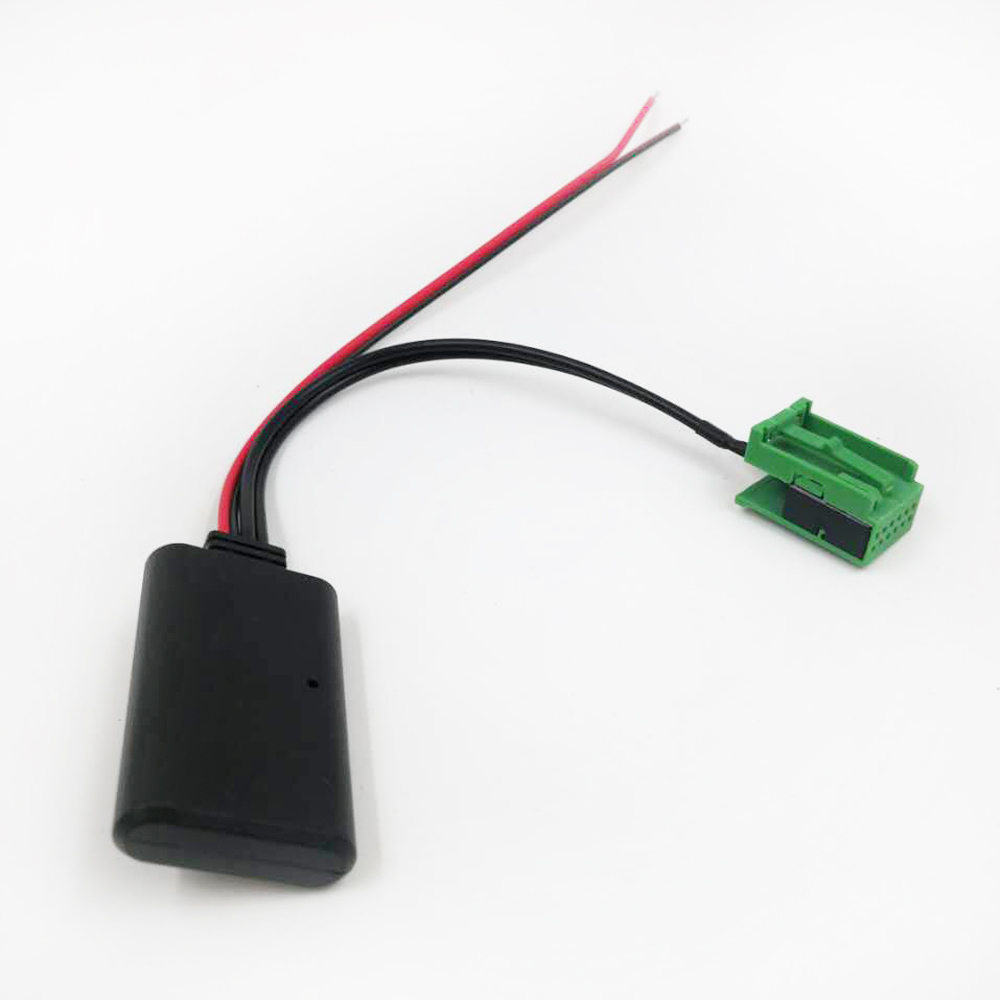

Car 12Pin AUX IN Audio Receiver Bluetooth Module Cable Adapter For Mercedes Ben CLC SLK SL 2008 Comand NTG 2.5 System

Description:

1. The bluetooth module is designed for Mercedes Benz 12Pin AUX IN Port.

2.This bluetooth adapter helps to play phone music through car radio, it doesn't support call answer.

- 12 Pin green plug

- Bluetooth Version; bluetooth 5.0

- Supported Bluetooth profiles: A2DP (audio transmission)

- Set up with auto-pairing in a minute

- Existing CD changer can still be used

- Function via Bluetooth-enabled devices

- Easy use and installation

Applications :

For Mercedes Benz CLC 2008, SLK 2008, SL 2008 -> Comand NTG 2.5 on MOST connection (AUX function available on the Comand NTG 2.5 system of new generation that have the front MICRO SD card available) and do not have the MEDIA INTERFACE connected

Installation Instructions :

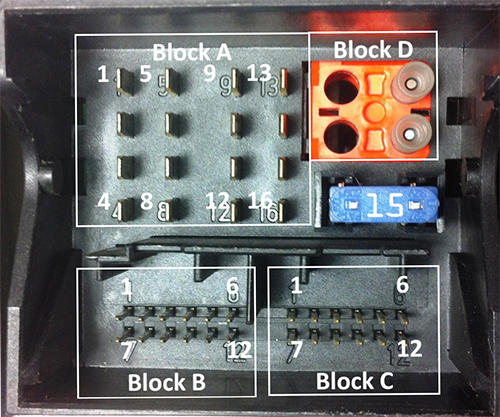

1. Insert the 12Pin green connector into the radio backside 12Pin AUX IN port (Connector C)

2. Connect the red wire to ACC 12V+, the black wire to GND 12V-.

3. Pair your Phone or MP3 or Tablet PC with bluetooth to the module ( Bluetooth Name: BLOOTH).

4. It is bluetooth 5.0 version, don't need password when connecting.

5. Choose AUX from your radio source list and play music on your phone.

6. After that, you can listen to your phone music through car speakers.
